Valve, Spring, and Valve Seal Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Stem Seal Driver 07PAD-0010000
Valve Spring Compressor Attachment 07757-PJ1010A

Coat the valve stems with new engine oil. Install the valves in the valve guides.
Check that the valves move up and down smoothly.
Install the spring seats on the cylinder head.
Install the new valve seals (A) using the 5.5 mm side of the stem seal driver (B).
NOTE: Exhaust valve seals (C) have a black spring (D) and intake valve seals (E) have a white or silver spring (F). They are not interchangeable.

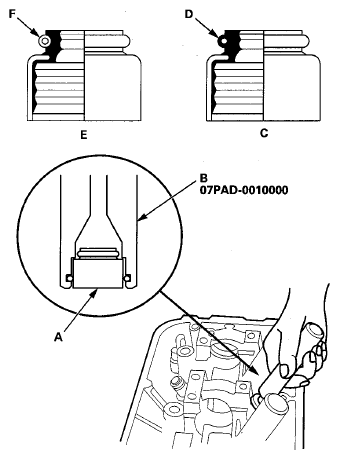

Fig 1: Installing Valve Seals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the valve spring and the spring retainer. Place the end of the valve spring with closely wound coils toward the cylinder head.
Install the valve spring compressor attachment and the valve spring compressor. Compress the spring and install the valve cotters.

Fig 2: Installing Valve Spring Compressor Attachment To Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the valve spring compressor and the valve spring compressor attachment.
Lightly tap the end of each valve stem two or three times with a plastic mallet (A) to ensure proper seating of the valve and valve cotters. Tap the valve stem only along its axis so you do not bend the stem.
NOTE: Be sure to raise the head off the work bench so the valve is not possibly damaged.

Fig 3: Tapping Valve Stem End Using Plastic Mallet
Courtesy of AMERICAN HONDA MOTOR CO., INC.
