Rocker Arm Assembly Removal: Front

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Loosen the locknuts and the adjusting screws (A).

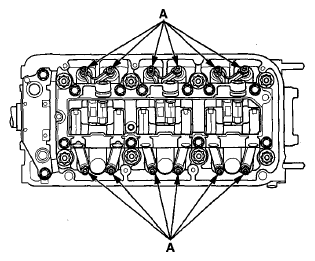

    Fig 1: Identifying Locknuts And Adjusting Screws
    G08052201Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker shaft bridge mounting bolts, the rocker shaft holder mounting bolts, and the rocker arm assembly.
    1. Loosen the rocker shaft bridge mounting bolts and the rocker shaft holder mounting bolts in sequence two turns at a time, to prevent damaging the valves or the rocker arm assembly.
    2. When removing the rocker arm assembly, do not remove the rocker shaft bridge mounting bolts and the rocker shaft holder mounting bolts. The bolts will keep the rocker arms on the shafts.

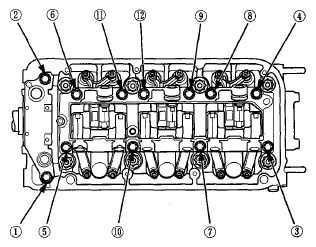

      Fig 2: Identifying Rocker Shaft Bridge And Holder Mounting Bolt Loosening Sequence
      G08052202Courtesy of AMERICAN HONDA MOTOR CO., INC.
