Cylinder Head Inspection for Warpage
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cylinder head (see CYLINDER HEAD REMOVAL ).
- Inspect the camshaft (see CAMSHAFT INSPECTION ).

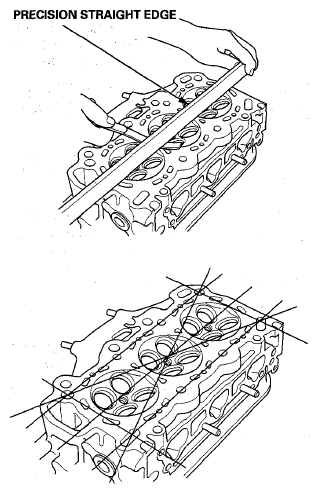

- Check the cylinder head for warpage. Measure along the edges, and three ways across the center:
- If warpage is less than 0.05 mm (0.002 in), cylinder head resurfacing is not required.
- If warpage is between 0.05 mm (0.002 in) and 0.2 mm (0.008 in), resurface the cylinder head.
- Maximum resurface limit is 0.2 mm (0.008 in) based on a height of 121 mm (4.76 in).
Cylinder Head Height
Standard (New): 120.95-121.05 mm (4.7618-4.7657 in)
Service Limit: 120.8 mm (4.756 in)
