DTC B2968 or DTC indicator A and WINDSHIELD DEFROST: A Short in the Humidity Sensor Circuit

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clear the DTCs with the HDS.
  2. Turn the ignition switch to LOCK (0) and then back to ON (II).
  3. Do the self-diagnostic function with the HDS (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITH THE HDS  ) or the climate control unit (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS  ).
  4. Check for DTCs.

    Is DTC B2968 or A and WINDSHIELD DEFROST indicated?

    YES  -Go to step 5.

    NO  -Intermittent failure.

  5. Check for DTCs.

    Are these DTCs also present; B1234 or K and AUTO, and/or B1237 or N and AUTO, and/or B1245 or G, and/or B2980 or B and WINDSHIELD DEFROST?

    YES  -Go to step  13.

    NO  -Go to step 6.

  6. Turn the ignition switch to LOCK (0).
  7. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ), and test it (see HUMIDITY/IN-CAR TEMPERATURE SENSOR TEST  ).

    Is the humidity sensor OK?

    YES  -Go to step 8.

    NO  -Replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).

  8. Disconnect the humidity/in-car temperature sensor 4P connector.
  9. Disconnect climate control unit connector A (40P).
  10. Check for continuity between body ground and climate control unit connector A (40P) terminal No. 27.
    Fig 1: Checking For Continuity Between Body Ground And Climate Control Unit Connector A (40P) Terminal No. 27
    G08057918Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to body ground in the wire between the climate control unit and the humidity sensor.

    NO  -Go to step 11.

  11. Check for continuity between climate control unit connector A (40P) terminals No. 6 and No. 27.

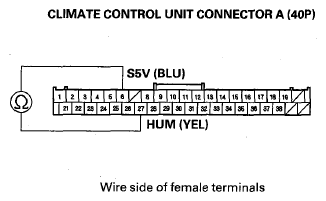

    Fig 2: Checking For Continuity Between Climate Control Unit Connector A (40P) Terminals No. 6 And No. 27
    G08057919Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short in the wires.

    NO  -Go to step 12.

  12. Turn the ignition switch to ON (II), and measure the voltage between climate control unit connector A (40P) terminal No. 27 and body ground.
    Fig 3: Measuring Voltage Between Climate Control Unit Connector A (40P) Terminal No. 27 And Body Ground
    G08057920Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there any voltage?

    YES  -Repair a short to power in the wire between the climate control unit and the humidity sensor. This short may also damage the climate control unit. Repair a short to power before replacing the climate control unit.

    NO  -Substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION  ).

  13. Turn the ignition switch to LOCK (0), and disconnect climate control unit connector A (40P).
  14. Disconnect these items:
    • Driver's air mix control motor
    • Passenger's air mix control motor
    • Rear air mix control motor
    • Humidity/in-car temperature sensor
    • A/C pressure sensor
  15. Check for continuity between climate control unit connector A (40P) terminal No. 6 and body ground.

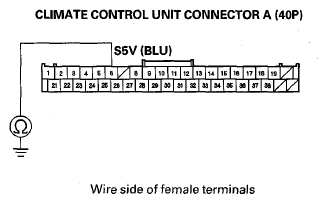

    Fig 4: Checking For Continuity Between Climate Control Unit Connector A (40P) Terminal No. 6 And Body Ground
    G08057921Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to body ground in the wire.

    NO  -Go to step 16.

  16. Turn the ignition switch to ON (II), and measure the voltage between the same terminal and body ground.

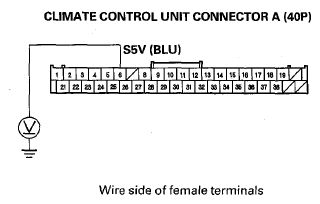

    Fig 5: Measuring Voltage Between Same Terminal And Body Ground
    G08057922Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there any voltage?

    YES  -Repair a short to power in the wire. This short may have also damaged the climate control unit. Repair a short to power before replacing the climate control unit.

    NO  -Go to step 17.

  17. Turn the ignition switch to LOCK (0).
  18. Reconnect the climate control unit connector A (40P).
  19. Turn the ignition switch to ON (II), and measure the voltage between climate control unit connector A (40P) terminal No. 6 and body ground.

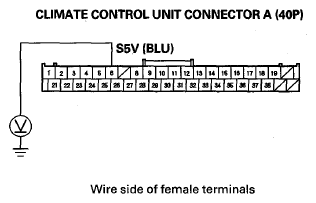

    Fig 6: Measuring Voltage Between Climate Control Unit Connector A (40P) Terminal No. 6 And Body Ground
    G08057923Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  -Go to step 20.

    NO  -Check for a loose wire or poor connection at climate control unit connector A (40P). If the connection is good, substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION  ).

  20. While measuring the voltage as described in step  19, reconnect these items individually and note the voltage reading each time:
    • Driver's air mix control motor
    • Passenger's air mix control motor
    • Rear air mix control motor
    • Humidity/in-car temperature sensor
    • A/C pressure sensor

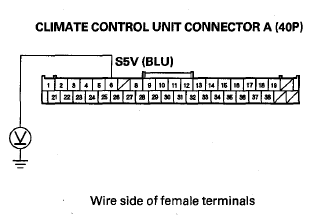

      Fig 7: Measuring Voltage Between Climate Control Unit Connector A (40P) Terminal No. 6 And Body Ground
      G08057924Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Does the voltage remain at about 5 V?

    YES  -Substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION  ).

    NO  -Replace the component that caused the voltage drop.
