A/C Compressor Clutch Overhaul

Special Tools Required

A/C Compressor Kit 07AAF-000A150

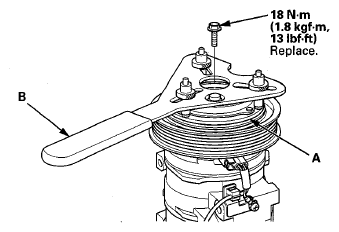

1. Remove the center bolt while holding the pressure plate (A) with the A/C clutch holder (B).
   Fig 1: Locating Center Bolt, Pressure Plate And A/C Clutch Holder

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the pressure plate (A) and the shim(s) (B), taking care not to lose the shim(s). If the clutch needs adjustment, increase or decrease the number and thickness of shims as necessary, then reinstall the pressure plate, and recheck its clearance (see A/C COMPRESSOR CLUTCH CHECK  ).
   NOTE: The shims are available in three thicknesses: 0.1 mm, 0.3 mm, and 0.5 mm.
   Fig 2: Locating Pressure Plate And Shim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

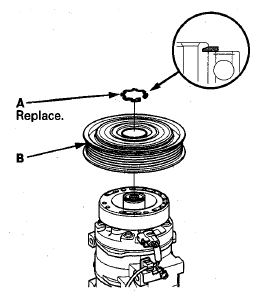

3. If you are replacing the field coil, remove the snap ring (A) with snap ring pliers, then remove the pulley (B). Be careful not to damage the pulley or the A/C compressor.
   Fig 3: Locating Snap Ring And Pulley

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the screw from the field coil ground terminal (A) and bracket (B). Disconnect the connector (C) from the field coil, then detach the wire harness clip (D). Remove the snap ring (E) with snap ring pliers, then remove the field coil (F). Be careful not to damage the field coil or the A/C compressor.
   Fig 4: Locating Field Coil Ground Terminal, Bracket, Connector, Wire Harness Clip, Snap Ring And Field Coil

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Reassemble the clutch in the reverse order of disassembly, and note these items:
   • Install the field coil with the wire side facing down, and align the boss on the field coil with the hole in the A/C compressor.
   • Clean the pulley and A/C compressor friction surfaces with contact cleaner or other non-petroleum solvent.
   • Install new snap rings, note the installation direction, and make sure they are fully seated in the groove.
   • Make sure that the pulley turns smoothly after it's reassembled.
   • Route and clamp the wires properly or they can be damaged by the pulley.
