Fuel Pump/Fuel Gauge Sending Unit Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
Remove the fuel level sensor (fuel gauge sending unit) (A) from the fuel tank unit (B).

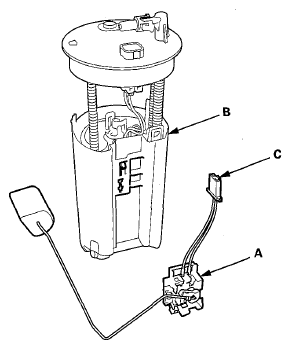

Fig 1: Identifying Fuel Level Sensor (Fuel Gauge Sending Unit) And Fuel Tank Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check these items before installing the fuel tank unit:
- When connecting the wire harness, make sure the connection is secure and the connector (C) is firmly locked into place.
- When installing the fuel gauge sending unit, make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
Install the parts in the reverse order of removal. When installing the fuel tank unit, align the marks on the unit and the fuel tank (see INSTALLATION ).
