Pump Pressure Test with T/N 07406-001000A or T/IM 07406-001A101

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

P/S Joint Adapter (Pump) 07VAK-P8A011A
P/S Joint Adapter Plate (Pump) 07VAK-P8A012C
Hose Joint Adapter 07RAK-S040122
P/S Pressure Gauge 07406-001000A or 07406-001A101

Check the fluid pressure as follows to determine whether the trouble is in the pump or steering gearbox.

Check the power steering fluid level
Disconnect the pump outlet hose (A) from the pump outlet with care so as not to spill the power steering fluid on the frame and other parts, then install the P/S joint adapter (pump) on the pump outlet (B) with the P/S joint adapter plate (pump).

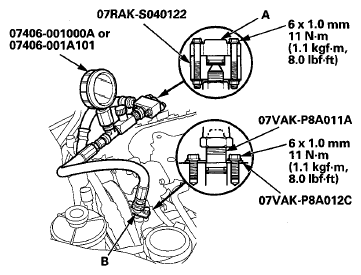

Fig 1: Installing P/S Joint Adapter (Pump) On Pump Outlet
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the hose joint adapter to the P/S pressure gauge, then connect the pump outlet hose to the hose joint adapter.
Install the P/S pressure gauge to the P/S joint adapter (pump).
Open the shut-off valve (A) fully.

Fig 2: Identifying Shut-Off Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the engine and let it idle.
Turn the steering wheel from lock to lock several times to warm the fluid to the operating temperature of 158°F(70°C).
Measure steady-state fluid pressure while the engine is idling. If the pump is in good condition, the gauge should read no more than 1, 470 kPa (15 kgf/cm² , 213 psi).
If it reads high, check for:
- Clogged or deformed inlet or return line and return or outlet hose between the pump and the steering gearbox.
- Clogged rack valve body unit.
Let the engine idle, and gradually close the shut-off valve and immediately read the pressure.
NOTE: Do not keep the shut-off valve closed more than 5 seconds or the pump could be damaged by over-heating.
Immediately open the shut-off valve fully. If the pump is in good condition, the gauge should read 8, 920-9, 420 kPa (90.96-96.06 kgf/cm² , 1, 293.8-1, 366.3 psi). A low reading means pump output is too low for full assist. Repair or replace the pump.
