SH-AWD Control Unit Inputs and Outputs

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The SH-AWD control unit terminal voltages and the measuring conditions for the SH-AWD control system.

Do the SH-AWD inputs and outputs test with the SH-AWD connectors connected.

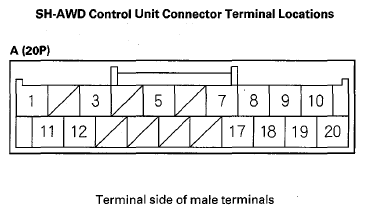

Fig 1: Identifying SH-AWD Control Unit Connector A(20P) Terminal Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal number	Wire color	Signal	Description	Measuring Conditions/Terminal Voltage
A1	BLK	LFH	Detects left search coil signal (positive)	With ignition switch ON (II): about 2.5 V
A3	BLU	RFH	Detects right search coil signal (positive)	With ignition switch ON (II): about 2.5 V
A5	ORN	K-LINE	Communication line SH-AWD control unit-to-DLC	With ignition switch ON (II): about 0 V or battery voltage
A7	PUR	IG1	Power supply for SH-AWD control unit	With ignition switch ON (II): battery voltage
A8	GRN	TOL	Detects differential fluid temperature sensor (negative)	With ignition switch ON (II): about 0.2 V to 4.7 V (Depending on rear differential fluid temperature)
A9	BLK	LG1	Unit ground	With ignition switch ON (II): about 0 V
A10	WHT	F-CAN AH	F-CAN communication signal	With ignition switch ON (II): about 2.5 V or 3.5 V
A11	RED	LFL	Detects left search coil signal (negative)	With ignition switch ON (II): about 2.5 V
A12	RED	RFL	Detects right search coil signal (negative)	With ignition switch ON (II): about 2.5 V
A17	LT BLU	FSR	Drives SH-AWD relay	With ignition switch ON (II): about 0 V or battery voltage
A18	WHT	TOH	Power supply for differential fluid temperature sensor	With ignition switch ON (II): about 4.7 V to 5 V
A19	GRY	WEN	Detects write enable signal	With ignition switch ON (II): about 0 V
A20	RED	F-CAN AL	F-CAN communication signal	With ignition switch ON (II): about 1.5 V or 2.5 V

The SH-AWD control unit terminal voltages and the measuring conditions for the SH-AWD control system.

Do the SH-AWD inputs and outputs test with the SH-AWD connectors connected.

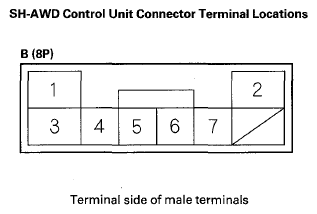

Fig 1: Identifying SH-AWD Control Unit Connector B(8P) Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal number	Wire color	Signal	Description	Measuring Conditions/Terminal Voltage
B1	WHT	PWR	Power supply for SH-AWD actuator	With engine running: battery voltage
B2	BLK	PG	Actuator ground	With ignition switch ON (II): about 0 V
B3	BLK	LG2	Unit ground	With ignition switch ON (II): about 0 V
B4	RED	LCH	Drives left clutch electromagnetic coil (positive)	With clutch off: about 0 V With clutch on: battery voltage
B5	BLU	LU-	Drives left clutch electromagnetic coil (negative)	With ignition switch ON (II): about 0 V
B6	ORN	RCH	Drives right clutch electromagnetic coil (positive)	With clutch off: about 0 V With clutch on: battery voltage
B7	GRY	RCL	Drives right clutch electromagnetic coil (negative)	With ignition switch ON (II): about 0 V
