Electromagnetic Clutch System: Construction
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

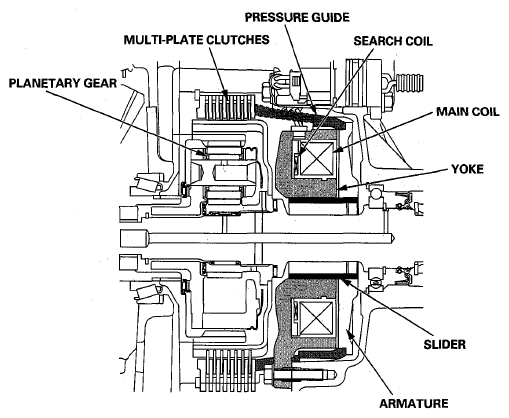

The electromagnetic clutch system is incorporated into the side case assemblies on both sides of the differential case. The system consists of the multi-plate clutches, the planetary gears, the pressure guides, the solenoid coil assembly (the search coil and the main coil), the armature assembly (the slider and the armature), and the yoke.
| Components | Purpose |
|---|---|
| Multi-plate clutches | Convert thrust into torque, absorb wheel speed differences |
| Planetary gears | Magnify and convey clutch torque |
| Pressure guides | Reduce fluctuations in pressure |
| Search coils | Detect magnetic flux |
| Main coils | Generates magnetic fields |
| Slider | Centers the armature |
| Armature | Generates magnetic flux to generate thrust |
| Yoke | Generates magnetic flux to clamping force |
