SH-AWD® Relay Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the SH-AWD relay (A).

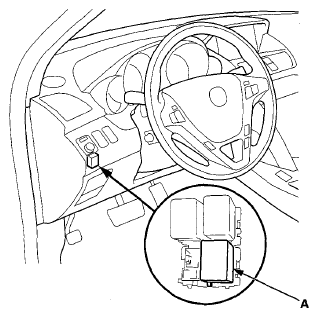

    Fig 1: Identifying SH-AWD Relay
    G08052795Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the SH-AWD relay in the reverse order of removal.
