Rear Differential Breather Box and Hose Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cargo rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the breather hose clips (A), then disconnect the breather hoses (B).

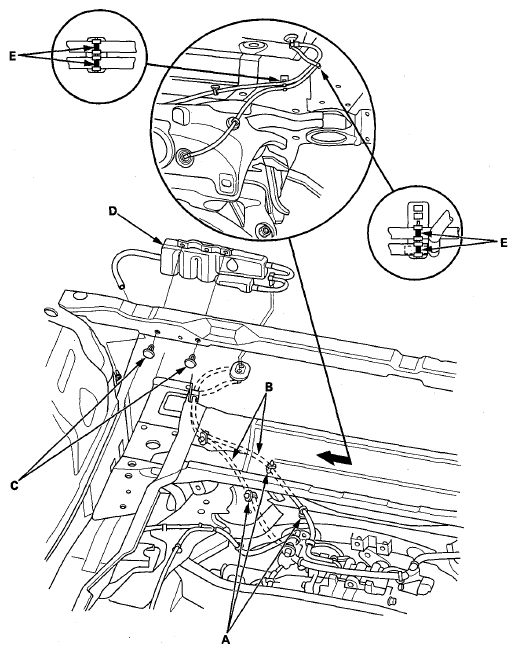

    Fig 1: Identifying Rear Differential Breather Box And Hose Related Components
    G08052797Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the breather box clips (C) and the breather box (D).
  4. Install the breather box, then connect the breather hoses and the breather hose clips.
  5. Align the point marks (E) on the breather hoses as shown.
  6. Make sure that all the hoses are properly routed, clipped into place, and not pinched.
  7. Install the cargo rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
