How to Troubleshoot Circuits at the SH-AWD Control Unit

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Backprobe Set 07SAZ-001000A (2)

With BSI: Remove the SH-AWD control unit (see SH-AWD® CONTROL UNIT REPLACEMENT ).
Without BSI: Remove the SH-AWD control unit (see SH-AWD® CONTROL UNIT REPLACEMENT ).
Inspect the circuit on the SH-AWD control unit according to the DTC Troubleshooting using the backprobe set and a digital multimeter or an analog circuit tester (A).

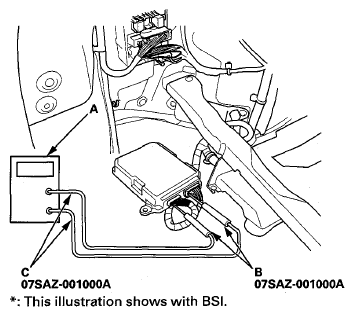

Fig 1: Connecting Backprobe Adapters To Stacking Patch Cords
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the backprobe adapters (B) to the stacking patch cords (C), and connect the cords to a digital multimeter or an analog circuit tester. Using the wire insulator as a guide for the contoured-tip of the backprobe adapter, gently slide the tip into the connector from the wire side until it comes in contact with the terminal end of the wires.
