How to Clear DTCs

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch in LOCK (0), connect the HDS to the DLC (A) behind the driver's dashboard lower cover.

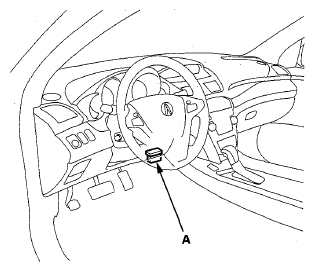

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the SH-AWD control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Clear the DTC(s) by following the screen prompts on the HDS.
Turn the ignition switch to LOCK (0).
NOTE: If the DTC that was cleared is related to another system, that system's DTC must be repaired, or the SH-AWD DTC will return.
