Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Oil Seal Driver, 66 mm 07947-3710200

Remove the transfer output shaft bearing (A) from the transmission housing (B) by heating the transmission housing to about 212°F (100°C) with a heat gun (C). Do not heat the transmission housing more than 212°F (100°C).

Fig 1: Heating Transmission Housing With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing in the transmission housing in the direction shown.

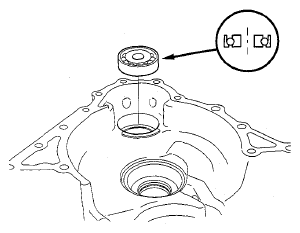

Fig 2: Locating Transmission Housing Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drive a new bearing until it bottoms in the transmission housing using the 66 mm oil seal driver.

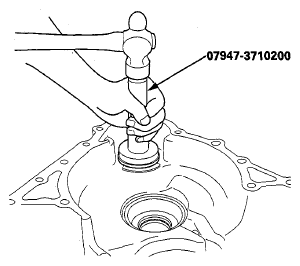

Fig 3: Driving Bearing In Transmission Housing Using 66 mm Oil Seal Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
