Transmission Fluid Pressure Switch D (5th Clutch) Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake air duct and the air cleaner housing.
  2. Disconnect the transmission fluid pressure switch D (5th clutch) connector, and remove transmission fluid pressure switch D (5th clutch) (A) and the sealing washer (B).

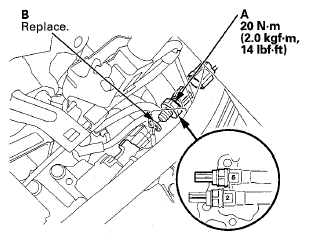

    Fig 1: Locating Transmission Fluid Pressure Switch D (5th Clutch) And Sealing Washer With Torque Specifications
    G08057383Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new transmission fluid pressure switch D (5th clutch) with a new sealing washer, and tighten the switch.
  4. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  5. Install the air cleaner housing and the intake air duct.
