Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see RECONNECTION ).
  2. Remove the main under-hood fuse box from the battery base.
  3. Remove the intake air duct and the air cleaner housing.
  4. Remove the battery base and the battery base bracket.
  5. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove transmission fluid pressure switch B (3rd clutch) (A) and the sealing washer (B).

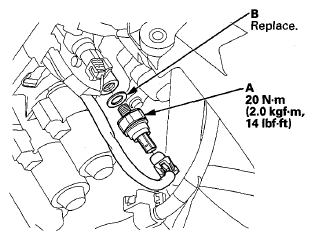

    Fig 1: Locating Transmission Fluid Pressure Switch B (3rd Clutch) And Sealing Washer With Torque Specifications
    G08057380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install a new transmission fluid pressure switch B (3rd clutch) with a new sealing washer, and tighten the switch.
  7. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  8. Install the battery base bracket and the battery base.
  9. Install the air cleaner housing and the intake air duct.
  10. Install the main under-hood fuse box on the battery base.
  11. Do the battery installation procedure (see RECONNECTION ).
