Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Driver Handle, 40 mm I.D. 07746-0030100

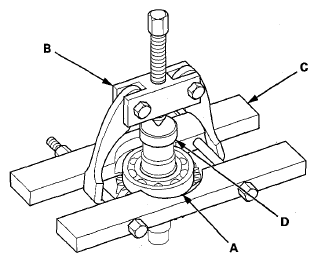

Remove the transfer output shaft bearing (A) with a commercially available puller (B), a bearing separator (C), and a spacer (D). Place a spacer between the transfer output shaft and the puller to prevent damaging the transfer output shaft.

Fig 1: Removing Transfer Output Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing (A) until it bottoms on the transfer output shaft using the 40 mm I.D. driver handle and a press.

Fig 2: Installing Bearing On Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
