Third Shaft Bearing Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 42 x 47 mm 07746-0010300

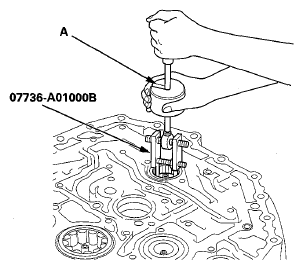

Remove the third shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 slide hammer (A).

Fig 1: Removing Third Shaft Bearing From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the ATF guide plate (A), and replace it if it is damaged.

Fig 2: Locating ATF Guide Plate And Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing (B) in the torque converter housing.

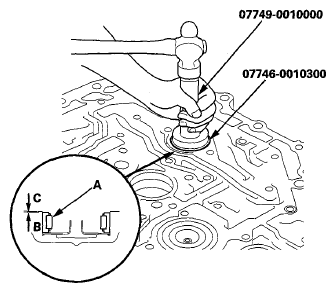

Drive the bearing (A) into the torque converter housing using the 15 x 135L driver handle and the 42 x 47 mm bearing driver attachment; install the bearing to a depth (B) of 0-0.07 mm (0-0.003 in) below the torque converter housing surface (C).

Fig 3: Installing Bearing To Depth Of 0-0.07 mm (0-0.003 in) Below Torque Converter Housing Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.
