Secondary Valve Body
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

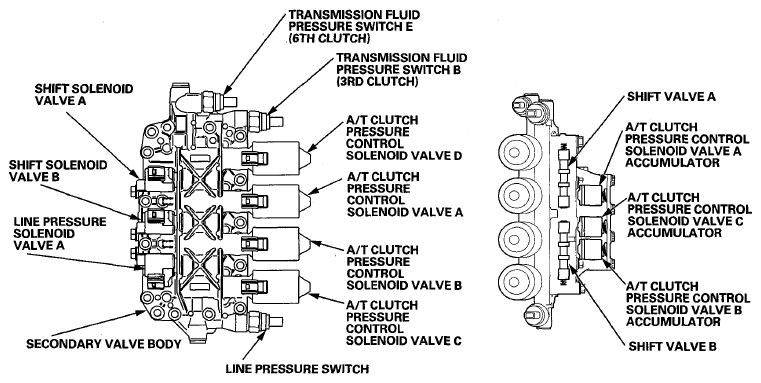

The secondary valve body contains the main shift hydraulic circuit, the solenoid valves, the hydraulic pressure switches, etc. The secondary valve body consists of shift solenoid valves A and B, line pressure solenoid valve A, A/T clutch pressure control solenoid valves A, B, C, and D, shift valves A and B, the A/T clutch pressure control solenoid valve A accumulator, the A/T clutch pressure control solenoid valve B accumulator, the A/T clutch pressure control solenoid valve C accumulator, the line pressure switch, transmission fluid pressure switch B (3rd clutch), and transmission fluid pressure switch E (6th clutch). The secondary valve body is mounted on the transmission housing.
