Lock-Up Control
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

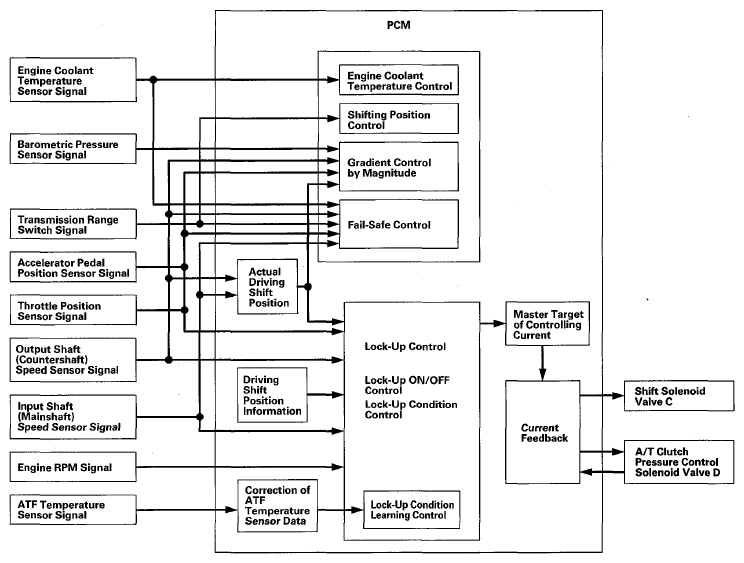

Shift solenoid valve C and A/T clutch pressure control solenoid valve D control the hydraulic pressure to switch the lock-up shift valve and lock-up ON and OFF. When the PCM actuates shift solenoid valve C and A/T clutch pressure control solenoid valve D ON, lock-up starts. A/T clutch pressure control solenoid valve D applies and regulates hydraulic pressure to the lock-up control valve to control the amount of lock-up. The lock-up mechanism operates:
- D - accelerating in 1st, 2nd, 3rd, 4th, 5th, and 6th gears
- D - accelerating in 2nd, 3rd, 4th, 5th, and 6th gears
- S with automatic shift mode - accelerating in 1st, 2nd, 3rd, 4th, and 5th gears
- S with automatic shift mode - decelerating in 2nd, 3rd, 4th, and 5th gears
- S with sequential sportshift mode - accelerating in 1st, 2nd, 3rd, 4th, 5th, and 6th gear
- S with sequential sportshift mode - decelerating in 2nd, 3rd, 4th, 5th, and 6th gears
