Shift Lever Knob Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

Grasp the shift lever boot ring, and slip it out of the shift lever knob.

Fig 1: Slipping Shift Lever Boot Ring Out Of Shift Lever Knob
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (A), and remove the shift lever knob (B).

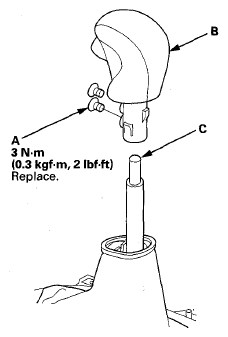

Fig 2: Locating Shift Lever Knob With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply silicone grease to the top (C) of the shift lever rod.
Install a new shift lever knob, and secure it with new screws.
Slide the shift lever boot ring over the shift lever knob until it snaps on.
