Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Driver Handle, 15 x 135L 07749-0010000
Attachment, 22 x 24 mm 07746-001A800

Remove the oil seal from the transmission housing.

Fig 1: Identifying Transmission Housing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

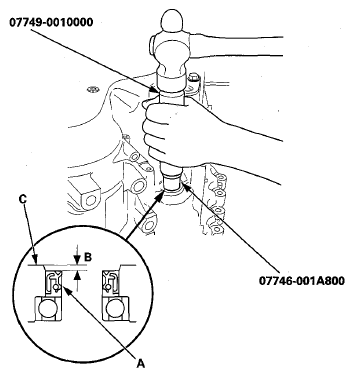

Install a new oil seal (A) in the transmission housing to a depth (B) of 0.3-1.0 mm (0.01-0.04 in) below the transmission housing surface (C) using the 15 x 135L driver handle and the 22 x 24 mm attachment.

Fig 2: Installing Transmission Housing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
