Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Bearing Remover Shaft Set, 15 mm 07936-KC10500
Slide Hammer 07936-371020A
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 28x30 mm 07946-1870100

Remove the selector control shaft bearing from the transmission housing using the 15 mm bearing remover shaft set and the slide hammer.

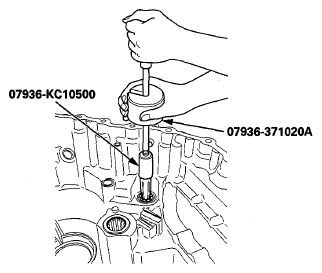

Fig 1: Removing Selector Control Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing until it bottoms in the transmission housing using the 15 x 135L driver handle and the 28 x 30 mm bearing driver attachment.

Fig 2: Installing Bearing Until It Bottoms In Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
