Paddle Shifter Illumination Circuit Troubleshooting

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.

  1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Disconnect the paddle shifter connector.
  3. Turn the ignition switch to ON (II), and turn the combination light switch to the SMALL (PARKING) position.
  4. Measure the voltage between paddle shifter connector terminal No. 1 and body ground.
    Fig 1: Measuring Voltage Between Paddle Shifter Connector Terminal No. 1 And Body Ground
    G08057558Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step  8.

    NO  -Go to step 5.

  5. Turn the ignition switch to LOCK (0), and turn the combination light switch to the OFF position.
  6. Check the No. 22 (7.5 A) fuse in the under-hood fuse/relay box.

    Is the fuse OK?

    YES  -Repair an open in the wire between paddle shifter connector terminal No. 1 and the under-hood fuse/relay box.

    NO  -Go to step 7.

  7. Check for continuity between paddle shifter connector terminal No. 1 and body ground.
    Fig 2: Checking For Continuity Between Paddle Shifter Connector Terminal No. 1 And Body Ground
    G08057559Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to body ground in the wire between paddle shifter connector terminal No. 1 and the under-hood fuse/relay box.

    NO  -Install a new No. 22 (7.5 A) fuse in the under-hood fuse/relay box, then go to step  4.

  8. Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
  9. Check for continuity between paddle shifter connector terminal No. 2 and gauge control module connector B (24P) terminal No. 2.

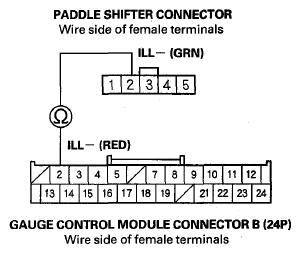

    Fig 3: Checking For Continuity Between Paddle Shifter Connector Terminal No. 2 And Gauge Control Module Connector B (24P) Terminal No. 2
    G08057560Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Check the illumination control circuit in the gauge control module self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ). If the test results are OK, replace the paddle shifter (see PADDLE SHIFTER REPLACEMENT  ).

    NO  -Repair an open in the wire between paddle shifter connector terminal No. 2 and the gauge control module B (24P).
