Paddle Shifter - (Downshift Switch) Circuit Troubleshooting
SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.
- Remove the steering wheel (see STEERING WHEEL REMOVAL ).

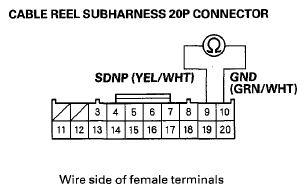

- Check for continuity between cable reel subharness 20P connector terminals No. 9 and No. 10 when pressing the paddle shifter - (downshift switch) and when the paddle shifter - (downshift switch) is released.Fig 1: Checking For Continuity Between Cable Reel Subharness 20P Connector Terminals No. 9 And No. 10
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity when pressing the paddle shifter - (downshift switch) and no continuity when the paddle shifter - (downshift switch) is released?
YES -Go to step 5.
NO -Go to step 3.
- Disconnect the paddle shifter connector.
- Check for continuity between paddle shifter connector terminals No. 4 and No. 5 when pressing and releasing the paddle shifter - (downshift switch).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity when pressing the paddle shifter - (downshift switch) and no continuity when the paddle shifter - (downshift switch) is released?
YES -Replace the cable reel subharness or repair poor connection at terminal T801.
NO -Replace the paddle shifter (see PADDLE SHIFTER REPLACEMENT ).
- Remove the cable reel (see CABLE REEL REPLACEMENT ).

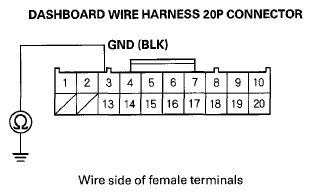

- Check for continuity between dashboard wire harness 20P connector terminal No. 3 and body ground.Fig 3: Checking For Continuity Between Dashboard Wire Harness 20P Connector Terminal No. 3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 7.
NO -Repair an open in the wire between dashboard wire harness 20P connector terminal No. 3 and body ground (G501), or repair poor body ground (G501).

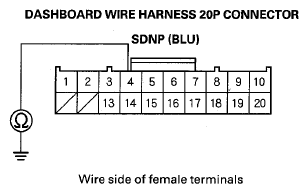

- Check for continuity between dashboard wire harness 20P connector terminal No. 4 and body ground.Fig 4: Checking For Continuity Between Dashboard Wire Harness 20P Connector Terminal No. 4 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to body ground in the wire between dashboard wire harness 20P connector terminal No. 4 and PCM connector terminal A37.
NO -Go to step 8.
- Turn the ignition switch to ON (II), and shift to S.
- Measure the voltage between dashboard wire harness 20P connector terminals No. 3 and No. 4.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
YES -Replace the cable reel (see CABLE REEL REPLACEMENT ).
NO -Go to step 10.
- Turn the ignition switch to LOCK (0).
- Jump the SCS line with the HDS.
- Disconnect PCM connector A (49P).
- Connect dashboard wire harness 20P connector terminal No. 4 to body ground with a jumper wire.
- Check for continuity between PCM connector terminal A37 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Check for loose or poor connections at PCM connector terminal A37. If the connection is OK, substitute a known-good PCM (see SUBSTITUTING THE PCM ) and recheck.
NO -Repair an open in the wire between PCM connector terminal A37 and the dashboard wire harness 20P connector.
