Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment 07GAD-PG40100
Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

Remove the oil seal from the transmission housing.

Fig 1: Removing Oil Seal From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the oil seal from the torque converter housing.

Fig 2: Removing Oil Seal From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new oil seal flush with the transmission housing using the 15 x 135L drive handle and the oil seal driver attachment.

Fig 3: Installing Oil Seal Flush With Transmission Housing Using 15 x 135L Drive Handle And Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new oil seal flush with the torque converter housing using the 15 x 135L drive handle and the 58 mm oil seal driver attachment.

Fig 4: Installing Oil Seal Flush With Torque Converter Housing Using 15 x 135L Drive Handle And 58 mm Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment, 65 mm 07JAD-SH3010A

Remove the oil seal from the torque converter housing.

Fig 1: Removing Oil Seal From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

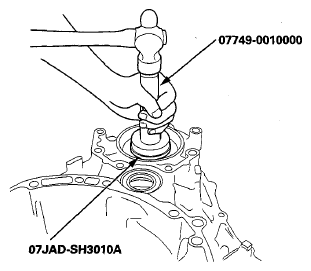

Install a new oil seal flush with the torque converter housing using the 15 x 135L driver handle and the 65 mm oil seal driver attachment.

Fig 2: Installing Oil Seal Flush With Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
