Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 62 x 68 mm 07746-0010500
Bearing Driver Attachment, 72 x 75 mm 07746-0010600

Remove the oil seal (A) from the torque converter housing.

Fig 1: Identifying Oil Seal Of Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

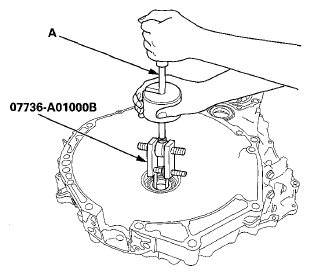

Remove the mainshaft bearing using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 slide hammer (A).

Fig 2: Removing Mainshaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing until it bottoms in the torque converter housing using the 15 x 135L driver handle and the 62 x 68 mm bearing driver attachment.

Fig 3: Installing Mainshaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new oil seal flush to the torque converter housing using the 15 x 135L driver handle and the 72 x 75 mm bearing driver attachment.
NOTE: Do not drive the oil seal into the torque converter housing until it bottoms out, it will block the fluid return passage and cause transmission damage.

Fig 4: Installing Oil Seal Flush
Courtesy of AMERICAN HONDA MOTOR CO., INC.
