Transfer Gear Backlash Measurement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift, and make sure it is supported securely.
  2. Shift the transmission into N.
  3. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

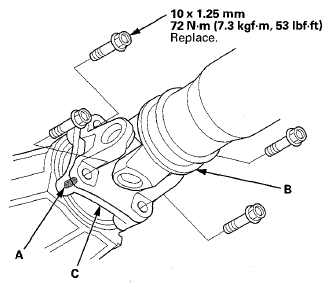

    Fig 1: Locating Reference Mark On Propeller Shaft And Transfer Companion Flange
    G08057770Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Separate the propeller shaft from the transfer companion flange.
  5. Set a dial indicator (A) on the transfer companion flange (B); position the dial indicator tip (C) on the direct extension of the bolt hole center (D).

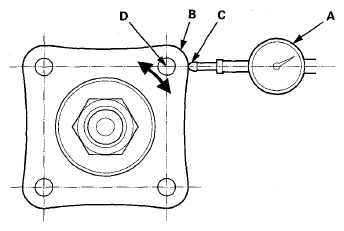

    Fig 2: Positioning Dial Indicator Tip (C) On Direct Extension Of Bolt Hole Center
    G08057771Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Measure the transfer gear backlash.

    Standard: 0.06-0.16 mm (0.0024-0.0063 in)

  7. If the transfer gear backlash is out of the standard, replace the transfer assembly.
