Input Shaft (Mainshaft) Speed Sensor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Remove the front undercover (A) and the splash shield (B).

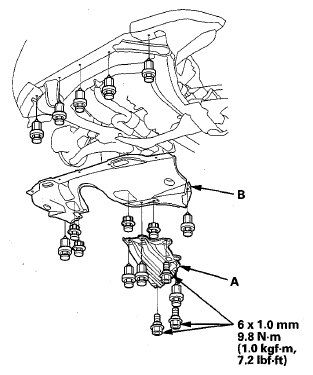

    Fig 1: Locating Front Undercover And Splash Shield With Torque Specifications
    G08057375Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor (A).

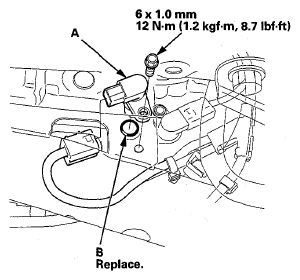

    Fig 2: Locating Input Shaft (Mainshaft) Speed Sensor And O-Ring With Torque Specifications
    G08057376Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Apply ATF to a new O-ring (B), and install the O-ring over the input shaft (mainshaft) speed sensor. Then install the input shaft (mainshaft) speed sensor.
  5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  6. Install the splash shield and the front undercover.
