Idler Gear Shaft Reassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the idler gear (A) over the idler gear shaft (B).

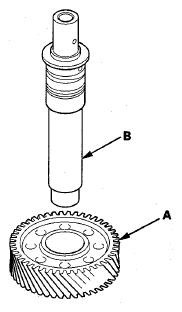

Fig 1: Locating Idler Gear And Idler Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the idler gear (A) on press bases (B), and place a spacer (C) between the idler gear shaft (D) and the press to prevent damaging the idler gear shaft.

Fig 2: Installing Idler Gear Using Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the idler gear using a press.
Install the 32.5 mm cotter (A), the cotter retainer (B), and the snap ring (C) on the idler gear shaft (D).

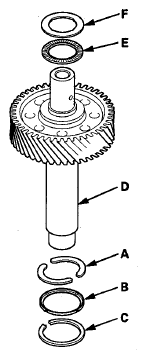

Fig 3: Locating 32.5 mm Cotter, Cotter Retainer, Snap Ring And Idler Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the 27.5 x 41 x 2.5 mm thrust needle bearing (E) and the 41.5 mm washer (F).
