Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Bearing Remover Shaft Set, 22 mm 070MC-MFR0100
Remover Handle 07936-3710100
Slide Hammer 07936-371020A
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 37 x 40 mm 07746-0010200

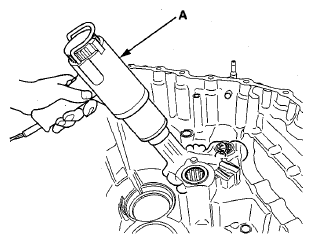

Heating the transmission housing to about 212°F (100°C) using a heat gun (A). Do not heat the transmission housing more than 212°F (100°C).

Fig 1: Heating Transmission Housing Using Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

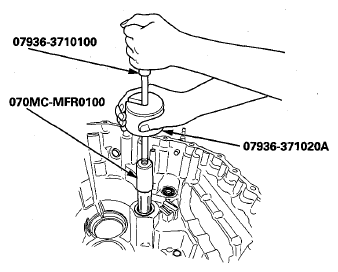

Remove the idler gear shaft bearing from the transmission housing using the 22 mm bearing remover shaft set, the remover handle, and the slide hammer.

Fig 2: Removing Idler Gear Shaft Bearing From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing until it bottoms in the transmission housing using the 15 x 135L driver handle and the 37 x 40 mm bearing driver attachment.

Fig 3: Installing Gear Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 52 x 55 mm 07746-0010400

Remove the idler gear shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 slide hammer (A).

Fig 1: Removing Idler Gear Shaft Bearing From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the ATF guide plate (A), and replace it if it is damaged.

Fig 2: Locating ATF Guide Plate And Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing (B) in the torque converter housing.

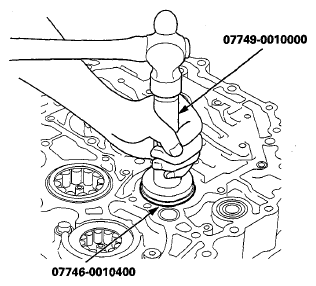

Drive the bearing until it bottoms into the torque converter housing using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment.

Fig 3: Driving Bearing Into Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
