DTC P2720: Problem in A/T Clutch Pressure Control Solenoid Valve D Circuit

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the GENERAL TROUBLESHOOTING INFORMATION
This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
If DTC P2720 is stored in the PCM, the transmission does not shift to 2nd or 5th gear because of the fail-safe function.

Turn the ignition switch to ON (II).
Clear the DTC with the HDS.
Check for Pending or Confirmed DTCs with the HDS.
Is DTC P2720 indicated?

YES -Go to step 4.

NO -Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between A/T clutch pressure control solenoid valve D and the PCM.
Turn the ignition switch to LOCK (0).
Jump the SCS line with the HDS.
Disconnect PCM connector B (49P).
Check for continuity between PCM connector terminal B43 and body ground.

Fig 1: Checking For Continuity Between PCM Connector Terminal B43 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 8.

NO -Go to step 10.
Disconnect the A/T clutch pressure control solenoid valve D connector.
Check for continuity between A/T clutch pressure control solenoid valve D connector terminal No. 1 and body ground.

Fig 2: Checking For Continuity Between A/T Clutch Pressure Control Solenoid Valve D Connector Terminal No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to body ground in the wire between PCM connector terminal B43 and A/T clutch pressure control solenoid valve D.

NO -Faulty A/T clutch pressure control solenoid valve D. Replace the secondary valve body (A/T clutch pressure control solenoid valve D) (see SECONDARY VALVE BODY REPLACEMENT ).
Disconnect the A/T clutch pressure control solenoid valve D connector.

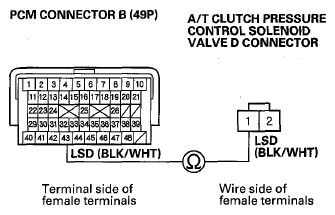

Check for continuity between PCM connector terminal B43 and A/T clutch pressure control solenoid valve D connector terminal No. 1.

Fig 3: Checking For Continuity Between PCM Connector Terminal B43 And A/T Clutch Pressure Control Solenoid Valve D Connector Terminal No. 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 12.

NO -Repair an open in the wire between A/T clutch pressure control solenoid valve D connector terminal No. 1 and PCM connector terminal B43.
Check for continuity between A/T clutch pressure control solenoid valve D connector terminal No. 2 and body ground.

Fig 4: Checking For Continuity Between A/T Clutch Pressure Control Solenoid Valve D Connector Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 13.

NO -Repair an open in the wire between the A/T clutch pressure control solenoid valve D connector and body ground (G101) (see CONNECTOR TO FUSE/RELAY BOX INDEX ), or repair poor body ground (G101).
Measure the resistance between A/T clutch pressure control solenoid valve D connector terminals No. 1 and No. 2.

Fig 5: Measuring Resistance Between A/T Clutch Pressure Control Solenoid Valve D Connector Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 4.7-5.9 Ω?

YES -Replace the PCM (see PCM REPLACEMENT ).

NO -Faulty A/T clutch pressure control solenoid valve D. Replace the secondary valve body (A/T clutch pressure control solenoid valve D) (see SECONDARY VALVE BODY REPLACEMENT ).
