Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 72 x 75 mm 07746-0010600

Remove the countershaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 slide hammer (A).

Fig 1: Removing Countershaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the ATF guide plate (A), and replace it if it is damaged.

Fig 2: Checking ATF Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing (B) in the direction shown.

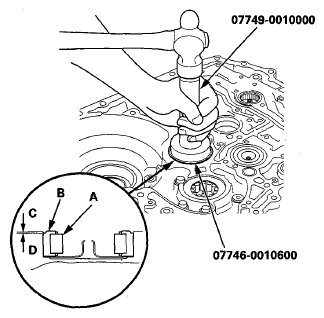

Drive the bearing (A) in the torque converter housing using the 15 x 135L driver handle and the 72x75 mm bearing driver attachment; install the bearing outer notch-cut (B) to a depth (C) of 0-0.14 mm (0-0.006 in) below the torque converter housing surface (D).

Fig 3: Installing Countershaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
