Component Location Index

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

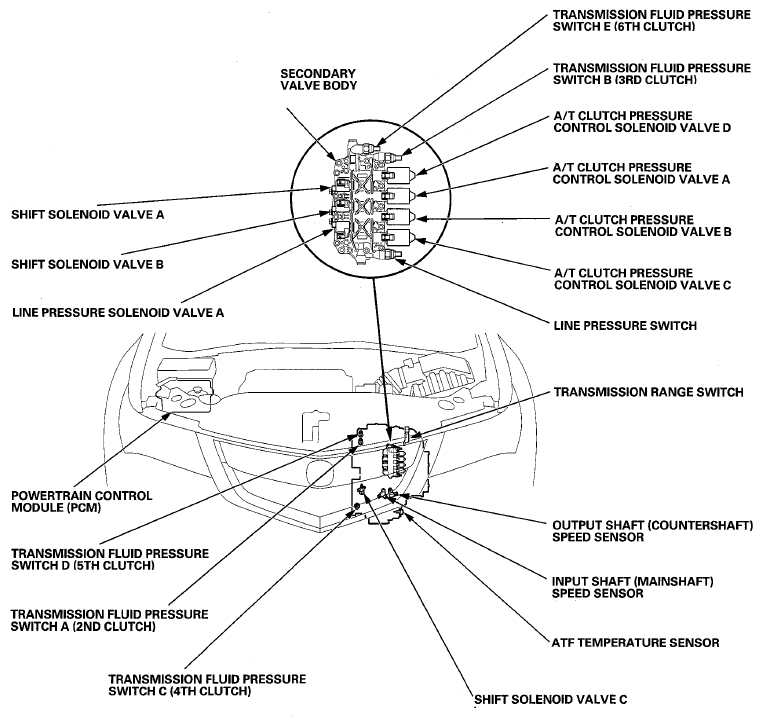

Fig 1: Identifying Automatic Transmission Components Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Automatic Transmission Components Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

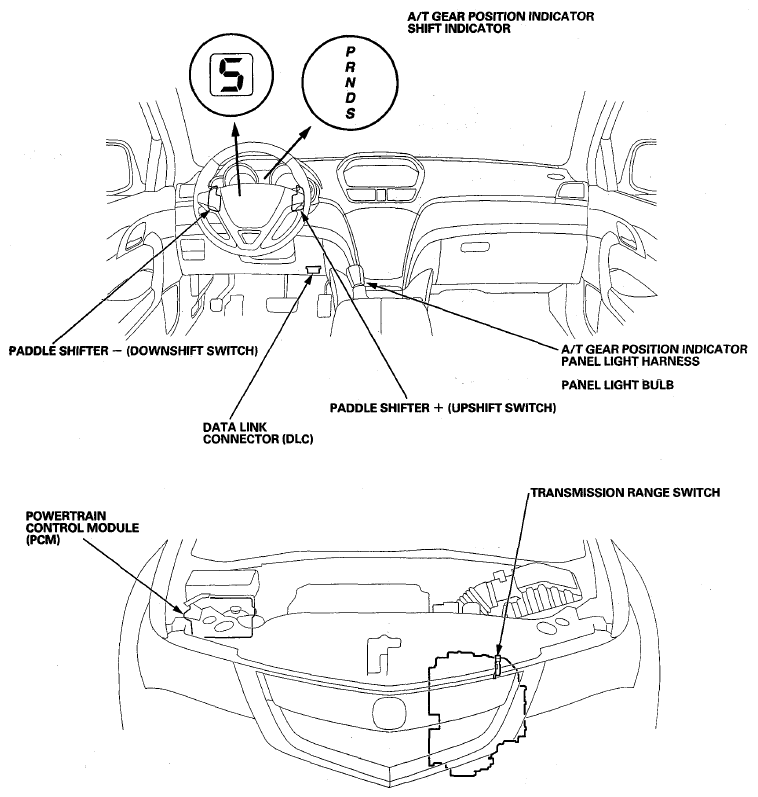

Fig 1: Identifying A/T Gear Position Indicator Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

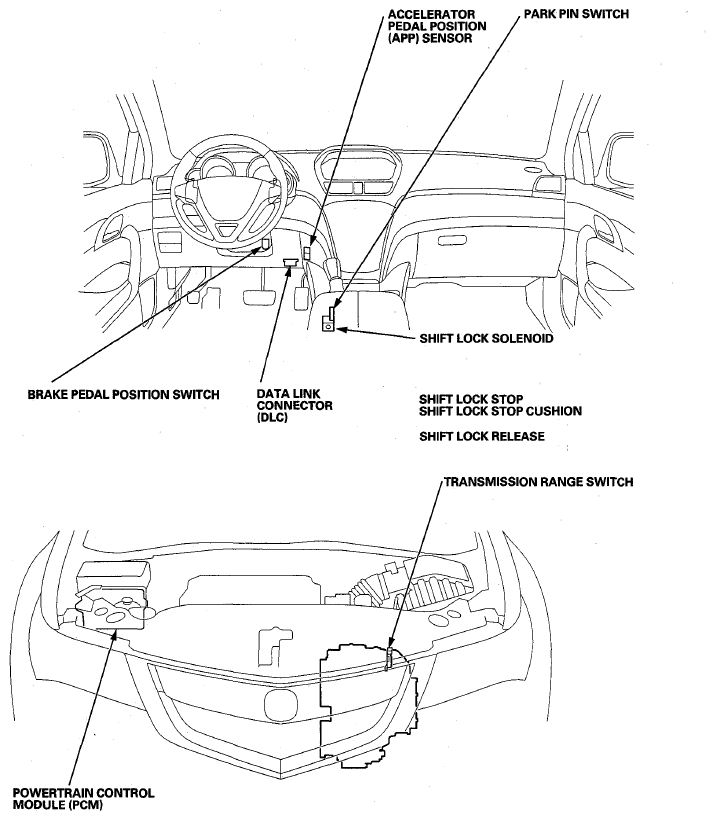

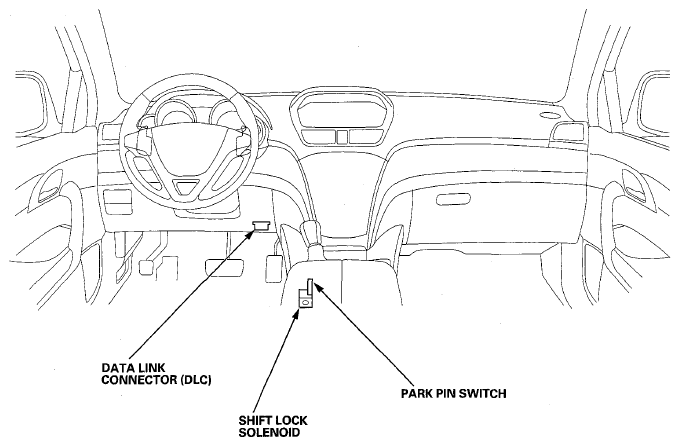

Fig 1: Locating A/T Interlock System Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

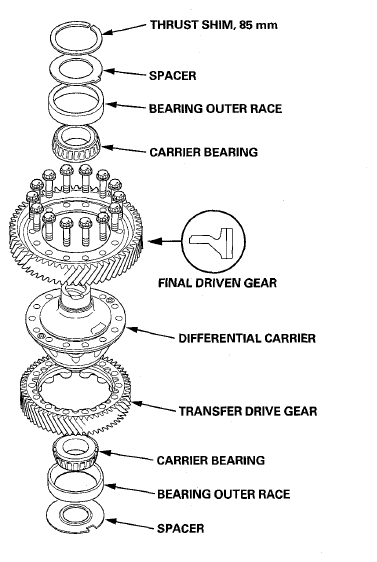

Fig 1: Identifying A/T Differential Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

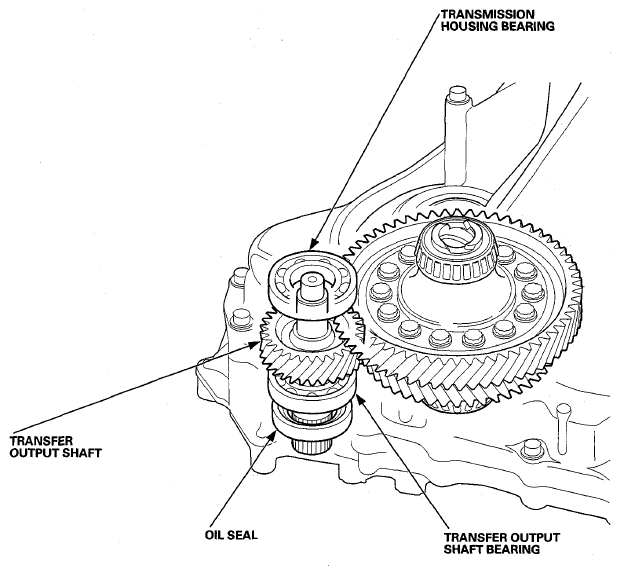

Fig 1: Identifying Transfer Output Shaft Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

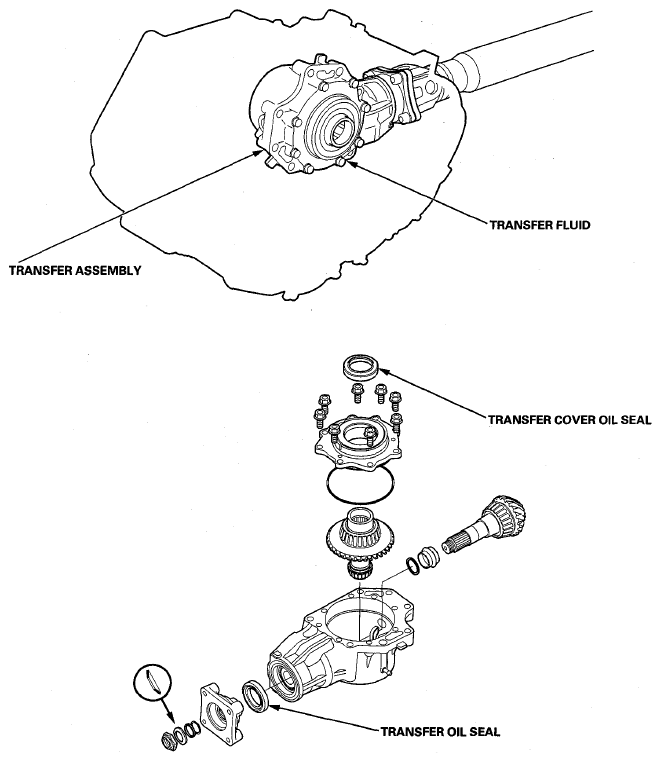

Fig 1: Identifying Transfer Assembly Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
