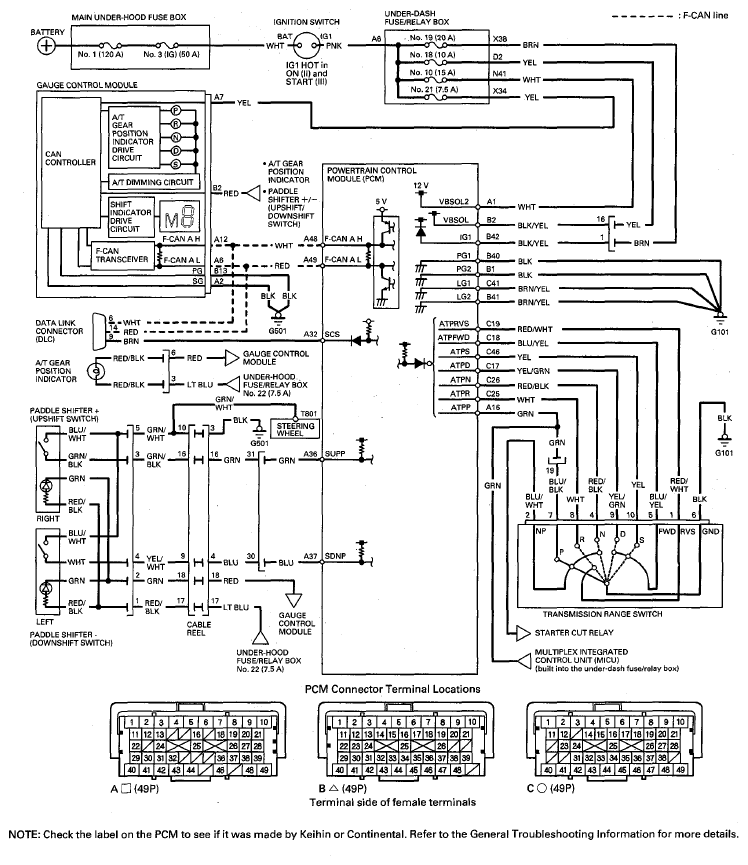

Fig 1: A/T Gear Position Indicator Circuit Diagram - Keihin PCM

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

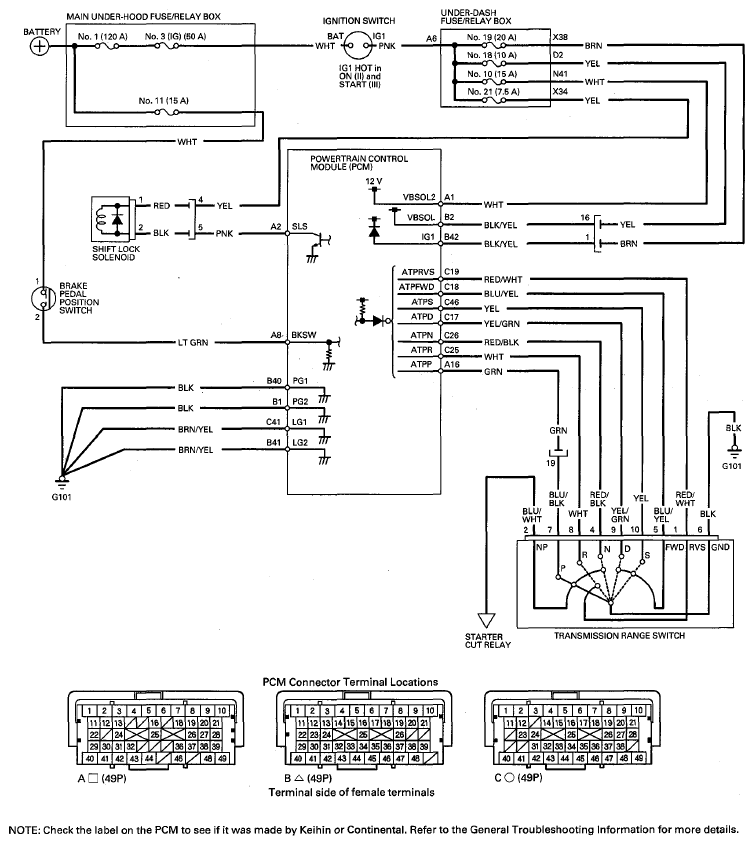

Fig 1: A/T Interlock System Circuit Diagram - Keihin PCM

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.
