Thermostat Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake air duct (see step 7 under ENGINE REMOVAL ).
  2. Drain the engine coolant (see COOLANT CHECK  ).
  3. Remove the thermostat cover, then remove the thermostat.

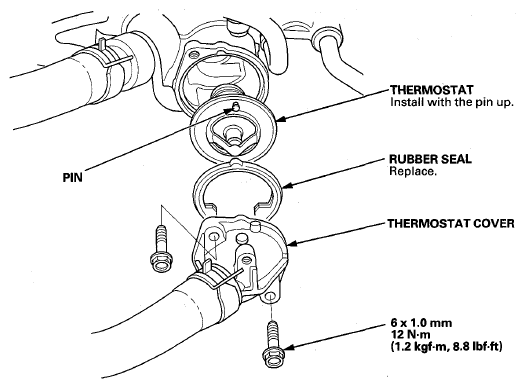

    Fig 1: Thermostat Location With Torque Specifications
    G08052392Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the new thermostat with a new rubber seal, then install the thermostat cover.
  5. Install the intake air duct (see step 6 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  6. Refill the radiator with engine coolant, then bleed air from the cooling system (see step  9 under Coolant Replacement  ).
  7. Clean up any spilled engine coolant.
