Fan Motor Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

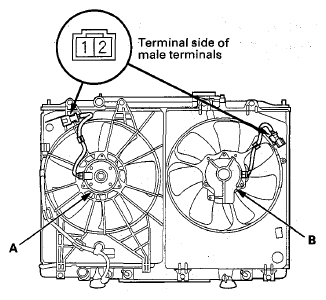

Fig 1: Identifying Radiator Fan Motor And A/C Condenser Fan Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting battery power to terminal No. 2 and ground to terminal No. 1.
If either motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT ).
