Inboard Joint Side

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the inboard boot.

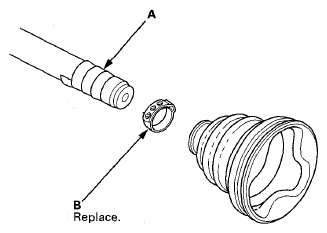

    Fig 1: Identifying Driveshaft With Vinyl Tape And Ear Clamp Band
    G08054752Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new ear clamp band (B) and the inboard boot onto the driveshaft, then remove the vinyl tape. Be careful not to damage the inboard boot.
  3. Install the spider and rollers (A) onto the driveshaft (B) by aligning the marks (C) you made, install it using the 30 mm inner driver (D).

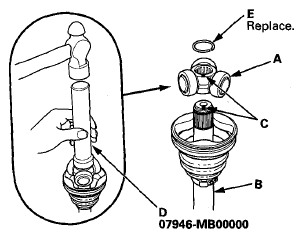

    Fig 2: Installing Spider And Rollers Onto Driveshaft
    G08054753Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install a new circlip (E) into the driveshaft groove. Always rotate the circlip in its groove to make sure it is fully seated.
  5. Pack the inboard joint with the joint grease included in the new inboard boot set.

    Grease quantity

    Inboard joint: 120-140 g (4.2-4.9 oz)

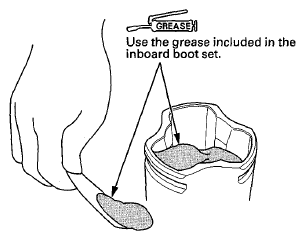

    Fig 3: Filling Joint Grease In Inboard Boot Set
    G08054754Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Fit the inboard joint onto the driveshaft, and note these items:
    • Reinstall the inboard joint onto the driveshaft by aligning the marks (A) you made on the inboard joint and the rollers.
    • Hold the driveshaft so the inboard joint is pointing up to prevent it from falling off.
    Fig 4: Aligning Marks On Inboard Joint And Rollers
    G08054755Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Fit the boot ends (A) onto the driveshaft (B) and the inboard joint (C).

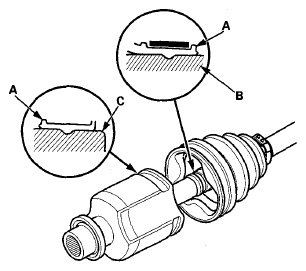

    Fig 5: Identifying Boot Ends, Driveshaft And Inboard Joint
    G08054756Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Adjust the length (A) of the driveshafts in the figure as shown, then adjust the boots to halfway between full compression and full extension. Bleed excess air from the boots by inserting a flat-tipped screwdriver between the boot and the joint.

    Left driveshaft: 590.9-595.9 mm (23.26-23.46 in)

    Right driveshaft: 619.9-624.9 mm (24.40-24.60 in)

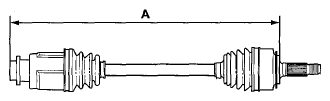

    Fig 6: Identifying Length Of Driveshaft
    G08054757Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install new boot bands.
    • For the double loop type (see step  11
    • For the low profile type (see step  20
    • For the ear clamp type (see step  12
