WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

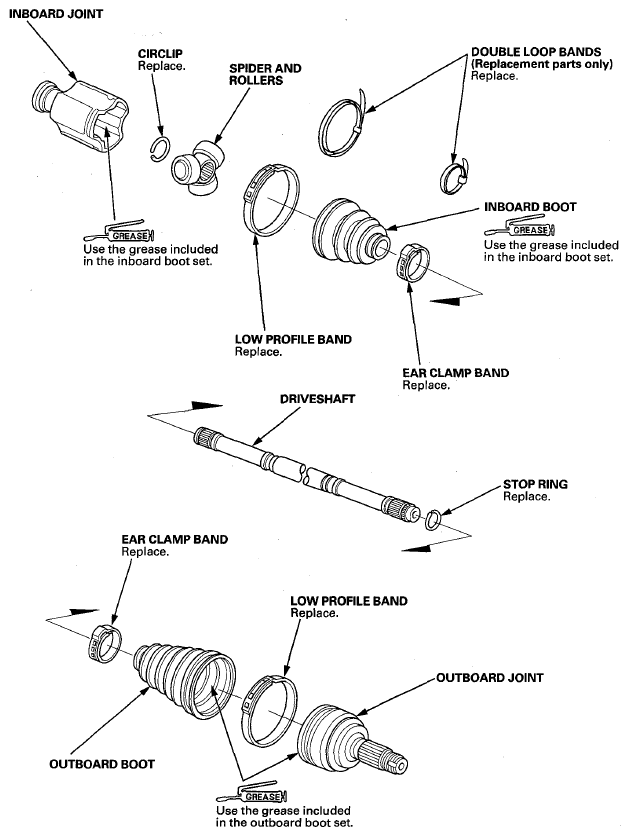

Fig 1: Exploded View Of Rear Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Driver, 30 mm I.D. 07946-MB00000
NOTE:
Refer to the
Exploded View, as needed, during this procedure.
