Inboard Joint Side

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the boot bands. Be careful not to damage the boot.
- If the boot band is a double loop type (A), lift up the band end (B), and push it into the chip (C).
- If the boot band is a low profile type (D), pinch the boot band using commercially available boot band pliers (E).
- If the boot band is an ear clamp type (F), lift up the three tabs (G) using a screwdriver.
Double loop type

Fig 1: Pushing Clip (Double Loop Type)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Low profile type

Fig 2: Pinching Boot Band (Low Profile Type)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Ear clamp type

Fig 3: Lifting Up Tabs Using Screwdriver (Ear Clamp Type)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

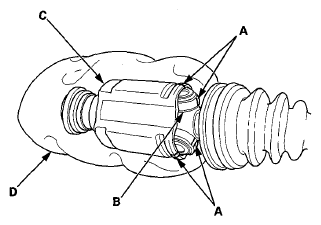

Make marks (A) on each roller (B) and the inboard joint (C) to identify the locations of the rollers to the grooves in the inboard joint.
NOTE: Do not engrave or scribe any makes on the rolling surface.

Fig 4: Identifying Marks On Roller And Inboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the inboard joint on a clean shop towel (D).
Remove the circlip (A).

Fig 5: Identifying Marks On Spider Or Rollers And Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make marks (B) on the spider and rollers (C) and the driveshaft (D) to identify the position of the spider on the shaft.
Remove the spider and rollers.
NOTE: If necessary, use a commercially available bearing puller while being careful not to damage the spider.

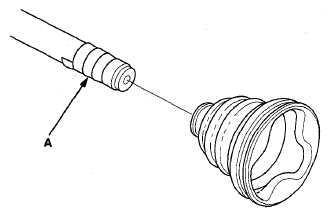

Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the inboard boot.

Fig 6: Identifying Driveshaft With Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the inboard boot. Be careful not to damage the boot.
Remove the vinyl tape.
