Propeller Shaft Installation: Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Set the No. 2 propeller shaft (A) to the rear differential companion flange (B), by aligning the reference mark (C) you made during the removal procedure. Then install new flange bolts (D) to the specified torque.
NOTE: When replacing the propeller shaft or the rear differential, align the factory reference marks (E).

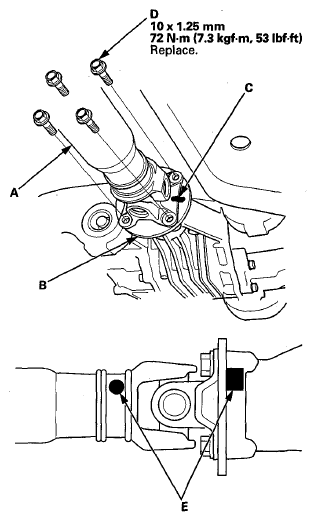

Fig 1: No. 2 Propeller Shaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center support bearing mounting bolts (A).

Fig 2: Center Support Bearing Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the No. 1 propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C) you made during the removal procedure. Then install new flange bolts (D) to the specified torque.

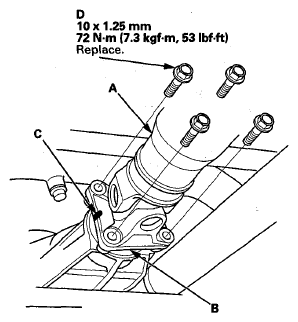

Fig 3: No. 1 Propeller Shaft Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the propeller shaft protector (A).

Fig 4: Propeller Shaft Protector And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If you installed a new propeller shaft, test-drive the vehicle at 55 mph (88 km/h), and check for noise or vibration. If there is a noise or vibration, rotate the propeller shaft 180 degrees from its current alignment with the rear differential companion flange, then recheck.
