Propeller Shaft Runout

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Move the shift lever to N.
Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Install a dial indicator with its needle on the center of the No. 1 propeller shaft or the No. 2 propeller shaft.
Turn the other propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.
No. 1 Propeller Shaft Runout Service Limit: 1.5 mm (0.06 in)

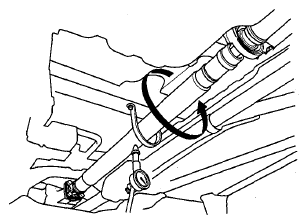

Fig 1: Checking No. 1 Propeller Shaft Runout
Courtesy of AMERICAN HONDA MOTOR CO., INC.

No. 2 Propeller Shaft Runout Service Limit: 1.5 mm (0.06 in)

Fig 2: Checking No. 2 Propeller Shaft Runout
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the runout on either propeller shaft exceeds the service limit, replace the propeller shaft assembly.
