Exploded View

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

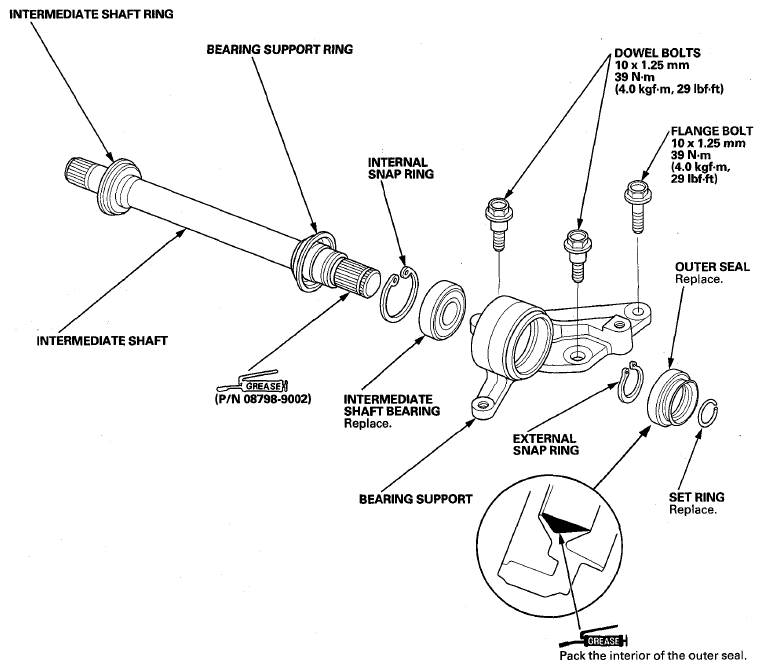

Fig 1: Exploded View Of Intermediate Shaft Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Fork Seal Driver, 39.2 x 49.5 x 15 mm 07947-4630100
Support Base 07965-SD90100
Oil Seal Driver Attachment 07JAD-PH80101
Attachment, 40 x 50 mm 07LAD-PW50601
Support Base Attachment 07LAF-SM40300

NOTE: Refer to the Exploded View, as needed, during this procedure.

Clean the disassembled parts with solvent, and dry them with compressed air.
NOTE: Do not wash the rubber parts with solvent.
Press a new intermediate shaft bearing (A) into the bearing support (B) using the 15 x 135L driver handle (C), the oil seal driver attachment (D), and a press.

Fig 2: Pressing Intermediate Shaft Bearing Into Bearing Support Using Driver Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

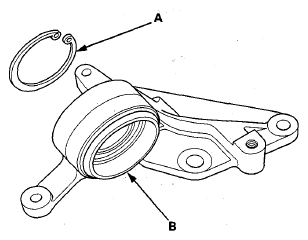

Install the internal snap ring (A) into the groove (B) of the bearing support.

Fig 3: Identifying Internal Snap Ring And Groove Of Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

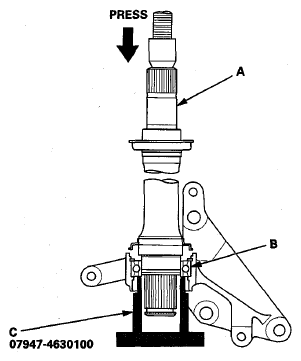

Press the intermediate shaft (A) into the shaft bearing (B) using the 39.2 x 49.5 x 15 mm fork seal driver (C) and a press.

Fig 4: Pressing Intermediate Shaft Into Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

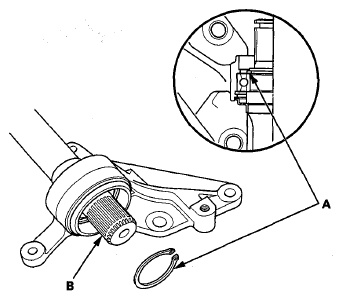

Install the external snap ring (A) into the groove of the intermediate shaft (B).

Fig 5: Identifying External Snap Ring And Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

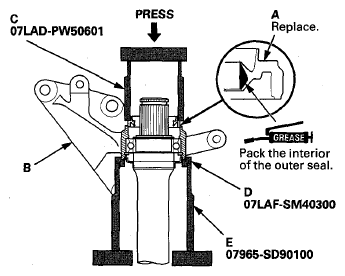

Install a new outer seal (A) into the bearing support (B) using the 40 x 50 mm attachment (C), the support base attachment (D), the support base (E), and a press.

Fig 6: Pressing Outer Seal Into Bearing Support Using Fork Seal Driver

Courtesy of AMERICAN HONDA MOTOR CO., INC.
