Intermediate Shaft Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent, and dry them with compressed air.
    NOTE: Do not wash the rubber parts with solvent.
  2. Install a new set ring (A) into the set ring groove of the intermediate shaft (B).

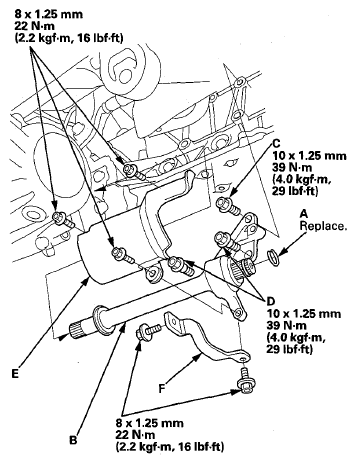

    Fig 1: Set Ring, Set Ring Groove, Intermediate Shaft And Bolts With Torque Specifications
    G08054728Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Insert the intermediate shaft into the differential correctly.
    NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal.
  4. Install the flange bolt (C), the two dowel bolts (D), the heat shield (E), and the rear warm up three way catalytic converter (rear WU-TWC) bracket (F).
  5. Install the right front driveshaft (see Front Driveshaft Installation  ).
  6. Install exhaust pipe A (see step 29 under ENGINE INSTALLATION ).
  7. Refill the transmission with the recommended transmission fluid (see ATF REPLACEMENT ).
  8. Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
  9. Test-drive the vehicle.
