Intermediate Shaft Disassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Bearing Driver Attachment, 42 x 47 mm 07746-0010300
Driver Handle, 15 x 135L 07749-0010000
Support Base 07965-SD90100
Support Base Attachment 07LAF-SM40300

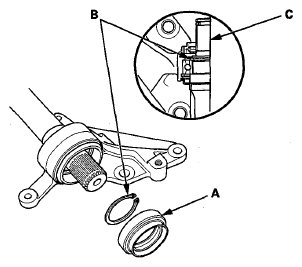

Remove the outer seal (A) and the external snap ring (B) from the intermediate shaft (C).

Fig 1: Identifying Outer Seal, External Snap Ring And Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

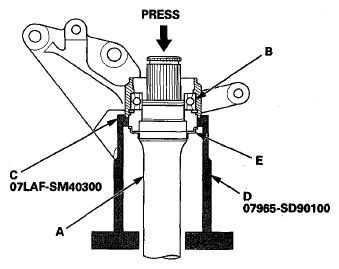

Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the support base attachment (C), the support base (D), and a press. Be careful not to damage the bearing support ring (E) on the intermediate shaft during disassembly.

Fig 2: Pressing Intermediate Shaft Of Intermediate Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

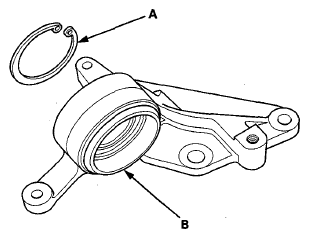

Remove the internal snap ring (A) from the bearing support (B).

Fig 3: Identifying Internal Snap Ring And Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

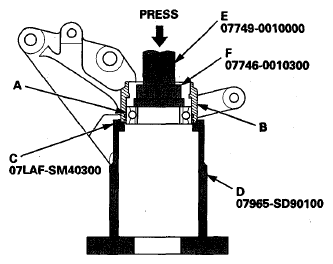

Press the intermediate shaft bearing (A) out of the bearing support (B) using the support base attachment (C), the support base (D), the 15 x 135L driver handle (E), the 42 x 47 mm bearing driver attachment (F), and a press.

Fig 4: Pressing Intermediate Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
