Exploded View (Right side)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

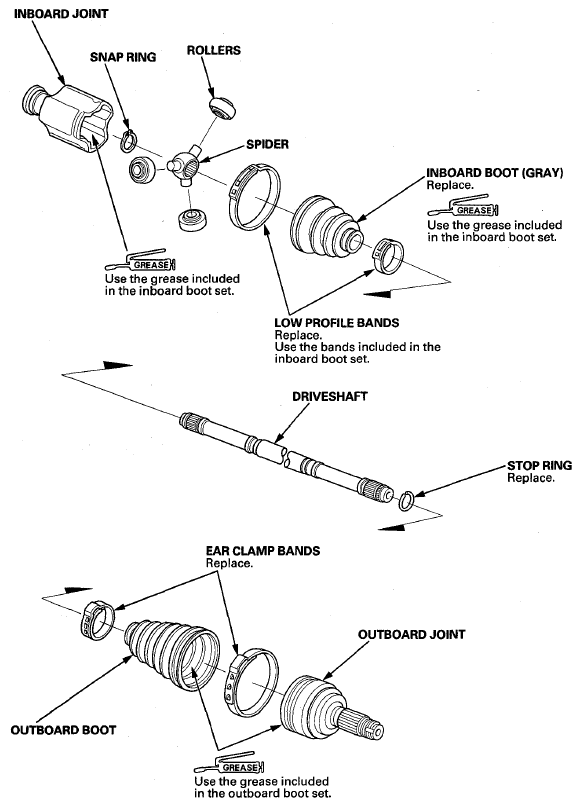

Fig 1: Exploded View Of Front Driveshaft (Right Side)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot Band Tool KD-3191 or equivalent, commercially available
Boot Band Clamp Tool Kent-Moore J-35910 or equivalent, commercially available
Boot Band Pliers, commercially available

NOTE:

Refer to the Exploded View, as needed, during this procedure.
Make sure to use silicone-type (gray) boot on the right front driveshaft inboard joint.

Do not reuse the removed right front driveshaft inboard boot.
Make sure to use the boot bands and the grease included in the inboard boot set or the inboard joint set.
