Outboard Joint Side

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

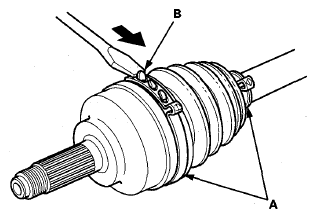

Remove the boot bands (A). Lift up the three tabs (B) using a flat-tipped screwdriver, then release the band. Be careful not to damage the boot.

Fig 1: Lifting Tabs And Boot Bands
Courtesy of AMERICAN HONDA MOTOR CO., INC.

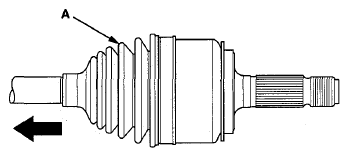

Slide the outboard boot (A) partially toward the inboard joint side. Be careful not to damage the boot.

Fig 2: Sliding Outboard Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wipe off the grease to expose the driveshaft and the outboard joint inner race.

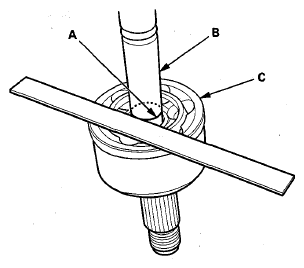

Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

Fig 3: Identifying Mark On Driveshaft And Outboard Joint End
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Securely clamp the driveshaft in a bench vise with a shop towel wrapped around the driveshaft.

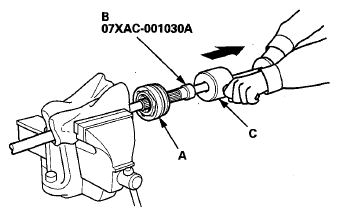

Remove the outboard joint (A) using the 26 x 1.5 mm threaded adapter (B) and a commercially available 5/8"-18 UNF slide hammer (C).

Fig 4: Removing Outboard Joint Using Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driveshaft from the bench vise.

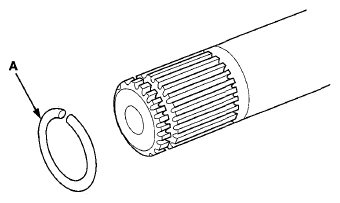

Remove the stop ring (A) from the driveshaft.

Fig 5: Identifying Stop Ring Of Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

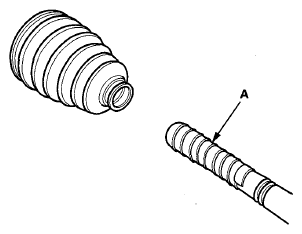

Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the outboard boot.

Fig 6: Identifying Driveshaft With Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the outboard boot. Be careful not to damage the boot.
Remove the vinyl tape.
