Rear Toe Inspection/Adjustment

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow the equipment manufacturer's instructions.

Release the parking brake to avoid an incorrect measurement.
Check the toe.
Rear toe-in: 2±2 mm (0.08±0.08 in)
- If adjustment is required, go to step 3.
- If no adjustment is required, go to front toe inspection/adjustment.
Hold the adjusting bolt (A) on the lower arm B, and remove the self-locking nut (C).

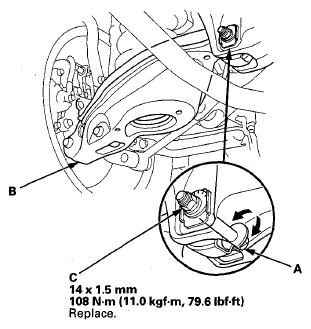

Fig 1: Self-Locking Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the self-locking nut with a new one, and lightly tighten it.
NOTE:
- Always use a new self-locking nut whenever it has been loosened.
- Reassemble the adjusting bolt and adjusting cam plate with the eccentric facing up.
Adjust the rear toe by turning the adjusting bolt until the toe is correct.
Tighten the self-locking nut to the specified torque while holding the adjusting bolt.
