Front Camber Adjustment

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The front camber can be adjusted by exchanging one of the damper pinch bolts with an adjusting bolt. The adjusting bolt is over-all shorter in length with a shallow shoulder. The adjusting bolt allows for more movement at damper to camber.

NOTE: If you need to use an adjusting bolt, refer to Parts Catalog for the part number.
Fig 1: Identifying Damper Pinch Bolt Dimensions
G08052843Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Adjusting Bolt Dimensions
G08052844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheels.
  3. Loosen the damper pinch bolts (A), and adjust the camber angle by moving the bottom of the damper within the range of the damper pinch bolt free play.
    Fig 3: Damper Pinch Bolts With Torque Specifications
    G08052845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten the damper pinch bolts while holding the flange nut to the specified torque.
  5. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheels.
  6. Lower the vehicle to the ground, and bounce the front of the vehicle up and down several times to stabilize the suspension.
  7. Measure the camber angle.
    • If the measurement is within specifications, measure the toe-in.
    • If the measurement is not within specifications, go to step 8.
  8. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  9. Remove the front wheels.
  10. Replace the damper pinch bolt (A) with the adjusting bolt (B), and adjust the camber angle.
    NOTE:
    • For positive camber adjustment replace the damper pinch bolt of the upper side with the adjusting bolt. Pull out damper to create a positive gain in camber angle.
    • For negative camber adjustment replace the damper pinch bolt of the lower side with the adjusting bolt. Push in damper to create a negative gain in camber angle.

    Positive camber adjustment

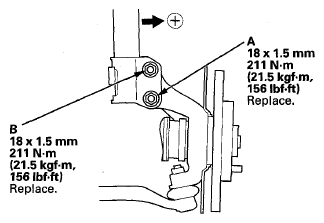

    Fig 4: Positive Camber Adjustment With Torque Specifications
    G08052846Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Negative camber adjustment

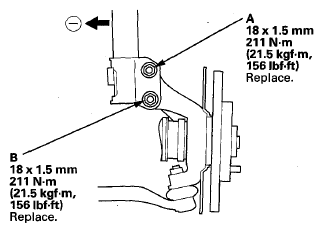

    Fig 5: Negative Camber Adjustment With Torque Specifications
    G08052847Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Tighten the damper pinch bolt and the adjusting bolt while holding the flange nut to the specified torque.
  12. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheels.
  13. Lower the vehicle to the ground, and bounce the front of the vehicle up and down several times to stabilize the suspension.
  14. Measure the camber angle. If the camber angle is not within specification, repeat step  8 through  13 to readjust the camber angle. If the camber measurement is correct, measure the toe-in, and adjust it if necessary.
