Gearbox Mount Cushion Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering gearbox (see STEERING GEARBOX REMOVAL AND INSTALLATION ).
Position a 34 mm socket wrench (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C) and a 10 mm nut (D) as shown.

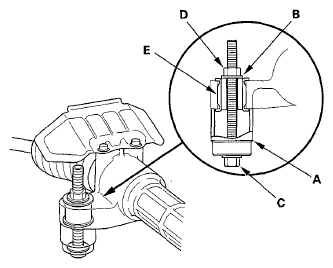

Fig 1: Identifying Socket Wrench, Washer, Flange Bolt, Nut & Gearbox Mount Cushion
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the flange bolt with a wrench, and tighten the nut with a wrench. Remove the gearbox mount cushion (E).
Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place it on the gearbox mounting cushion hole.

Fig 2: Identifying Gearbox Mount Cushion Surface & Mount Cushion Edges
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the 34 mm socket (B) on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.
Install the gearbox mount cushion by tightening the nut until the mount cushion edge (A) properly fits on the gearbox flange surface (B).

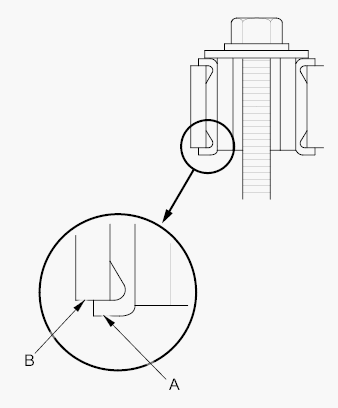

Fig 3: Identifying Gearbox Mount Cushion Edge And Gearbox Flange Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering gearbox (see INSTALLATION ).
